norelem has expanded its clamping technology portfolio of zero-point clamping systems and 5 axis clamping modules with UNILOCK, a system which allows complete machining of complex workpieces from five sides in a single clamping set-up.

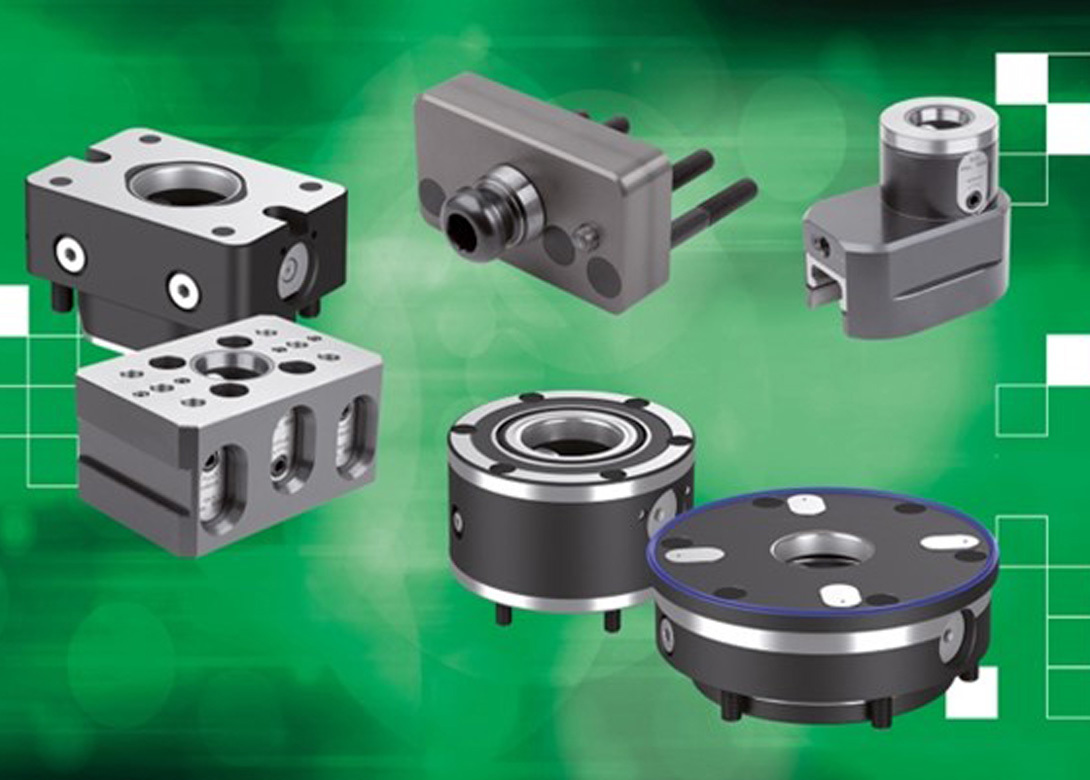

A new addition to the range is the UNILOCK EGM 110-75 clamping module. It is designed for use on machine tables or in fixtures, even in situations with limited space. The product can also be integrated with an EGM 110-75 pallet coupler in automated robotic systems, for automated changeover of clamping pallets.
The UNILOCK ESA 138 clamping module is ideal for automated clamping devices. In addition to sensor functions, four special contact surfaces with air contact control ensure that the clamping device is fully fixed. Also, a special scraper prevents the accumulation of impurities on the module.
The UNILOCK ASM 99 clamping module is an add-on module with a total height of 56mm (with the clamping module). Alternatively, the module can also be fully integrated in a fixture plate or the machine table.
The UNILOCK VARIO 5-axis basic module, for example, allows flexible positioning when clamping workpieces and fixtures. It can be mounted via the rail in the base with one or two UNILOCK clamping pins. If only one clamping pin is used, the VARIO basic module can rotate freely.
Also UNILOCK DUO 5-axis basic module with three interfaces for clamping pins is used for sturdy, elevated set-ups with heavy workpieces. This provides a larger contact surface than with round basic modules. DUO basic modules can be used with the double interface positioned downwards or upwards.
Each system features integrated sensor functions to ensure that the workpiece remains securely positioned at all times, thus preventing collisions with milling cutters or other tools. Available in module sizes 80 and 50, these clamping modules allow for the machining of objects with different geometries, formats and weights from five sides with no interfering contours.
The modular design and the large range of more than 70 modules and sizes, allows individual configuration of the system for numerous applications. By combining basic modules, add-on modules, and accessory components one can implement different heights, dock to interfaces and machine complex workpieces with excellent repeatability.
